| | 1988 - 1994 |
| Late 200 Series | | Garden tractor |
|
Series map:
260
265
285
17.0hp
17.0hp
18.0hp
| Engine Detail |

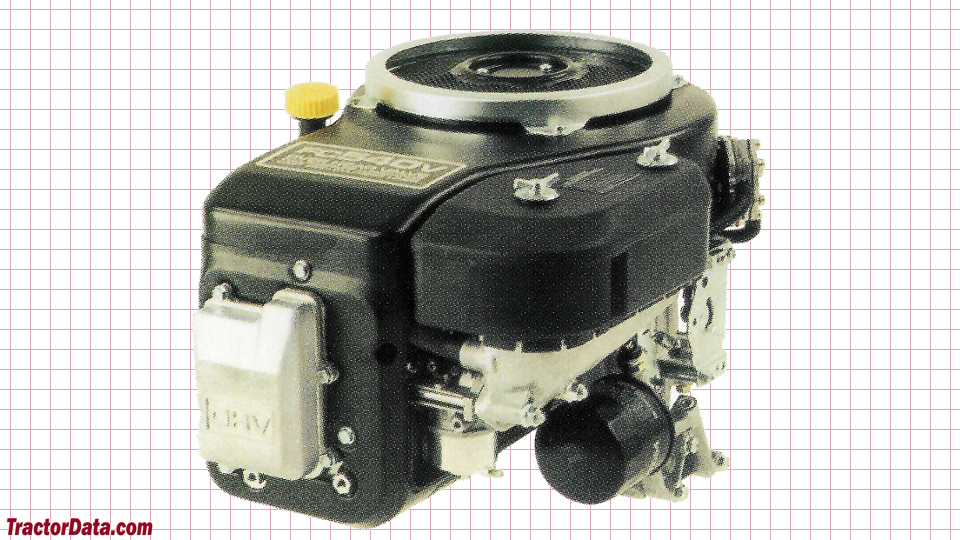

| Kawasaki FC540V |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 534 cc
32.6 ci
|
| Bore/Stroke | 3.5x3.4 inches
89 x 86 mm
|
| Power (gross) | 17 hp
12.7 kW
|
| Air cleaner | dry element with foam pre-cleaner
|
| Compression | 8.3:1
|
| Rated RPM | 3350
|
| Starter volts | 12
|

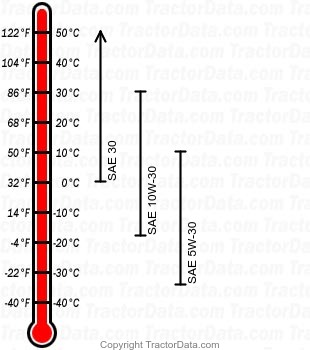

| Engine Oil |
|
| Oil capacity | 2.1 qts*The operator's manual states 2.1 US quarts with filter change. Readers report 1.6 quarts fills to the dipstick mark.
2.0 L
|
| Oil change | 50 h
|
| John Deere 265 Engine |
 |
