John Deere 240 Engine


John Deere 240 lawn tractor photo
1988 - 1992
Late 200 Series
Garden tractor
Series:240245
245
Engine Detail
Kawasaki FC420V
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement422 cc
25.8 ci
Bore/Stroke3.5x2.7 inches
89 x 69 mm
Power (gross)14 hp
10.4 kW
Air cleanerdry with foam pre-cleaner
Compression8.4:1
Rated RPM3350
Starter volts12
Engine Oil

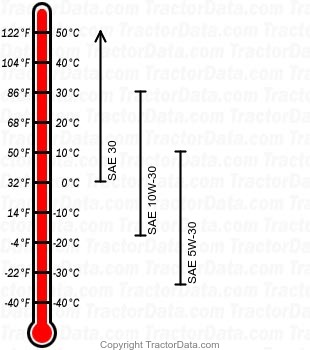

240 gasoline engine oil chart
Oil capacity1.25 qts
1.2 L
Oil change50 h
Page information
