John Deere 212 Engine


John Deere 212 lawn tractor photo
1975 - 1987
200 Series
Garden tractor
Series map:
210
212
214
10.0hp
12.0hp
14.0hp
Engine Detail
Kohler K301AQS
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement476 cc
29.1 ci
Bore/Stroke3.375x3.25 inches
86 x 83 mm
Power12 hp
8.9 kW
Air cleanerdry
Idle RPM1700-3500
Starter volts12
Engine Oil
212 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Oil change25 h
John Deere 212 Engine

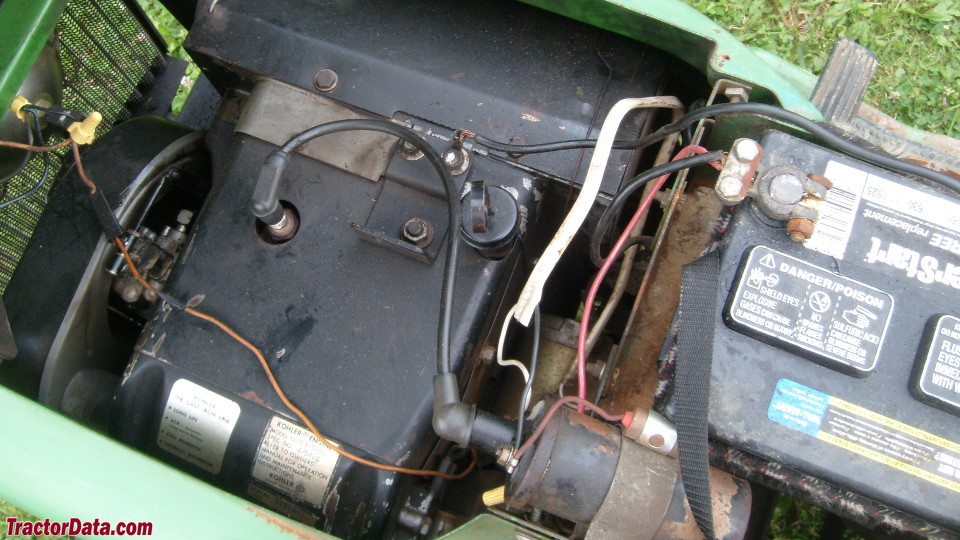

John Deere 212 engine image
Image courtesy of Jim H.
