John Deere 60 Transmission



John Deere 60 lawn tractor photo
1966 - 1969
Lawn tractor
Series map:
60
6.0hp
Transmission
TransmissionPeerless 1200
Typebelt-driven gear
Gears6 forward and 2 reverse
Oil capacity1.5 qts
1.4 L
Oil type
AM30200M
Three gears plus reverse. The drive belt has two positions for high and low ranges. To change the range, tilt the rear fender backwards and change the drive belt position.

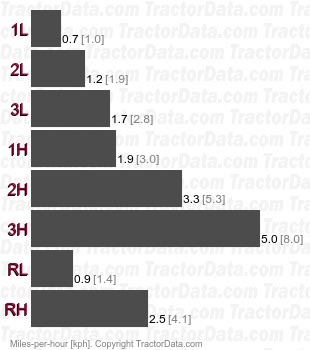

Speeds
60 1200 belt-driven gear speeds

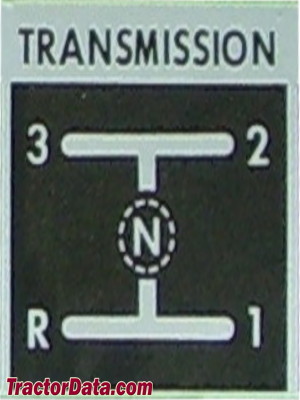

Shift Pattern
John Deere 60 transmission controls
60 Transmission Controls
John Deere 60 transmission controls
1Clutch/Brake
2Throttle
3Gear shift
4Parking brake
