| | 1967 - 1974 |
| Crawler Loader |
|
Series map:
HD-12G
195.0hp

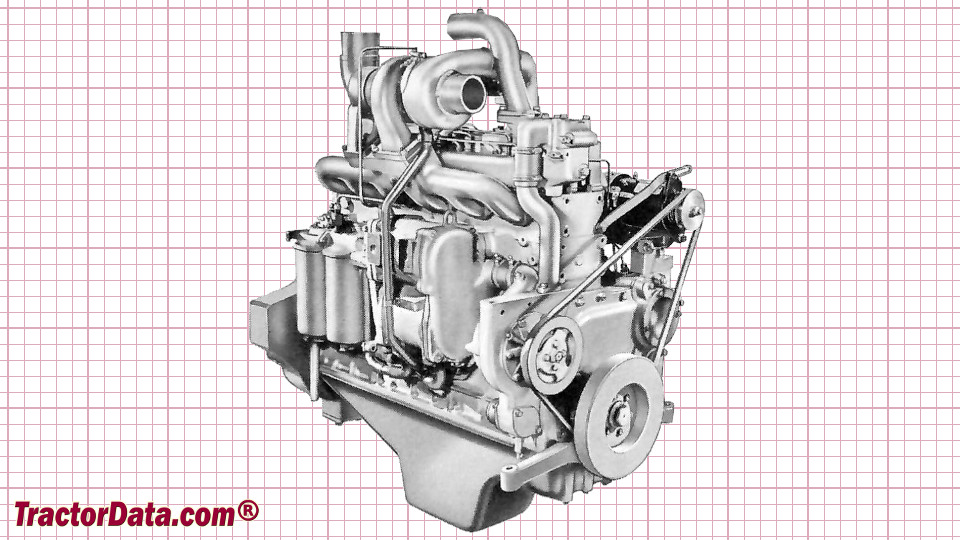

| Engine Detail |
| Allis Chlamers 11000 |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled inline |
| Early models of the 12G were rated at 185 horsepower. |
| Displacement | 516 ci
8.5 L
|
| Bore/Stroke | 4.4375x5.5625 inches
113 x 141 mm
|
| Power (net) | 195 hp
145.4 kW
|
| Starter | electric
|
| Starter volts | 24
|
| Coolant capacity | 86 qts
81.4 L
|

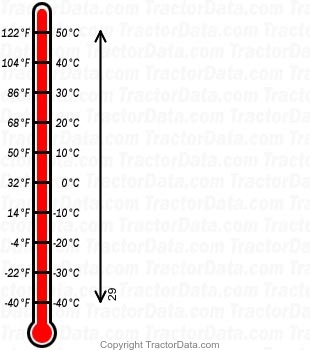

| Engine Oil |
|
| Allis Chalmers HD-12G Engine |
 |
