Tractors > J.I. Case > 1150K

J.I. Case 1150K Engine



J.I. Case 1150K tractor photo
2007 - 2013
K Series
Bulldozer
Series map:
1150K
130.0hp
Engine Detail
FPT 667TA
turbocharged diesel
6-cylinder
liquid-cooled
Displacement409 ci
6.7 L
Bore/Stroke4.09x5.20 inches
104 x 132 mm
Power (net)118 hp
88.0 kW
Power (gross)130 hp
96.9 kW
Fuel systemdirect injection
Air cleanerdry
Rated RPM2200
Torque434 lb-ft
588.5 Nm
Torque RPM1400
Starterelectric
Starter volts24
Oil capacity17.3 qts
16.4 L
Coolant capacity34 qts
32.2 L
J.I. Case 1150K Engine

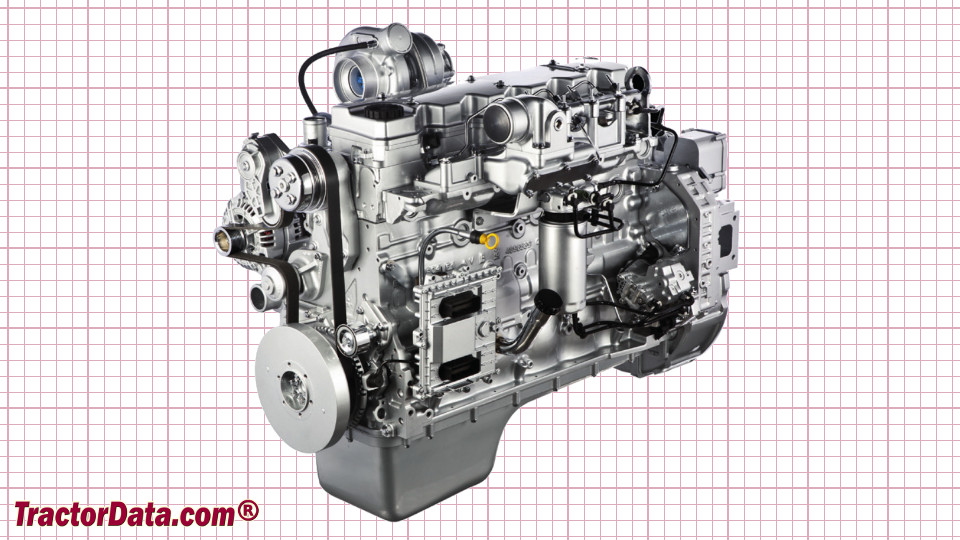

J.I. Case 1150K engine image
