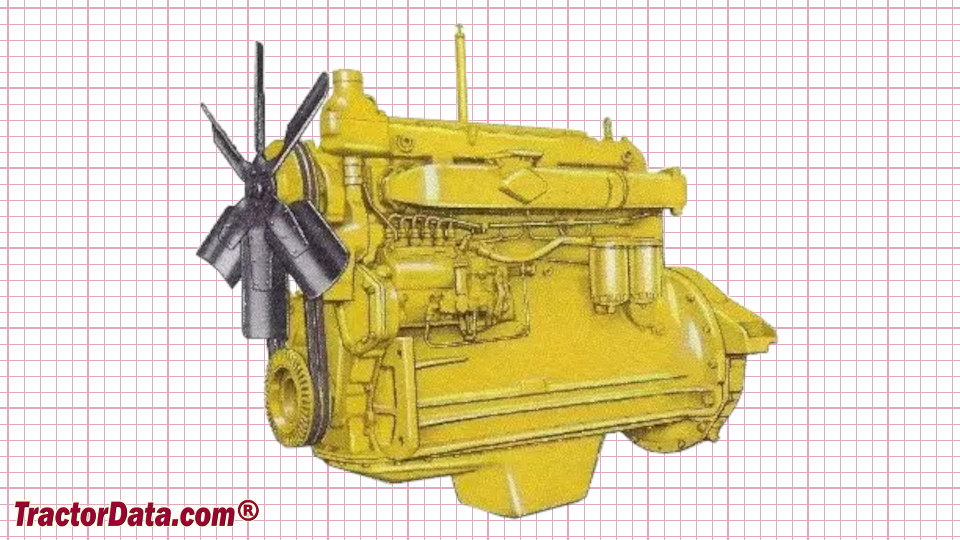

J.I. Case 1150B Engine
|
|
| Engine Detail | |
| J.I. Case A-451-BD | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement | 451 ci 7.4 L |
| Bore/Stroke | 4.375x5.00 inches 111 x 127 mm |
| Power (net) | 100 hp 74.6 kW |
| Power (gross) | 120 hp 89.5 kW |
| Air cleaner | dry |
| Compression | 16.5:1 |
| Rated RPM | 2100 |
| Torque | 343 lb-ft 465.1 Nm |
| Torque RPM | 1300 |
| Starter | electric |
| Starter volts | 24 |
| Oil capacity | 15 qts 14.2 L |
| Coolant capacity | 52 qts 49.2 L |
| J.I. Case 1150B Engine | |
 |
