Allis Chalmers HD-16 Series B Transmission


Allis Chalmers HD-16 Series B tractor photo
1971 - 1973
Bulldozer
Transmission options
6-speed gear
2-speed power shift
Transmission
TransmissionDirect Drive
Typegear
Gears6 forward and 3 reverse
Clutchwet disc
Oil capacity92 qts
87.1 L
Speeds
HD-16 Series B Direct Drive gear speeds
Transmission
Typepower shift
Gears2 forward and reverse
Oil capacity64 qts
60.6 L
Speeds

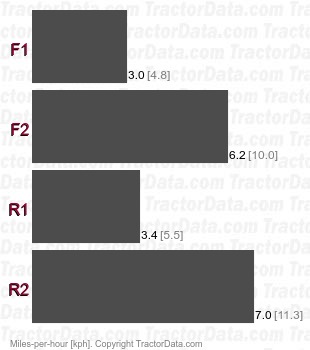

HD-16 Series B  power shift speeds
