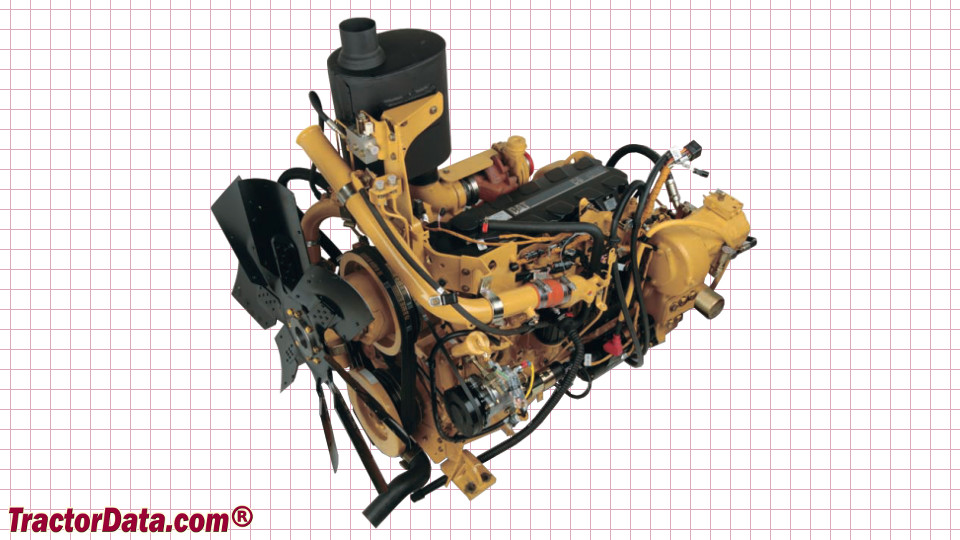

Caterpillar D6T Engine
|
|
| Engine Detail | |
| Caterpillar C9 | |
| turbocharged aftercooled diesel | |
| 6-cylinder | |
| liquid-cooled inline | |
| The D6T was rated at 200 net HP with XL, XW, or LGP undercarriage. | |
| Displacement | 537 ci 8.8 L |
| Bore/Stroke | 4.41x5.87 inches 112 x 149 mm |
| Emissions | Tier III |
| Power (net) | 185 hp 138.0 kW |
| Power (gross) | 213 hp 158.8 kW |
| Rated RPM | 1850 |
| Starter | electric |
| Starter volts | 24 |
| Oil capacity | 29.6 qts 28.0 L |
| Coolant capacity | 74 qts 70.0 L |
| Caterpillar D6T Engine | |
 |
