Tractors > Caterpillar > D7R Series II

Caterpillar D7R Series II Engine



No photo available
1996 - 2010
Model year
Bulldozer
Series map:
D7R
258.0hp
Engine Detail
Caterpillar 3176C
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement629 ci
10.3 L
Bore/Stroke4.90x5.50 inches
124 x 140 mm
Power (gross)258 hp
192.4 kW
Fuel systemdirect injection
Rated RPM2100
Starterelectric
Starter volts24
Oil capacity32.8 qts
31.0 L
Coolant capacity81.6 qts
77.2 L

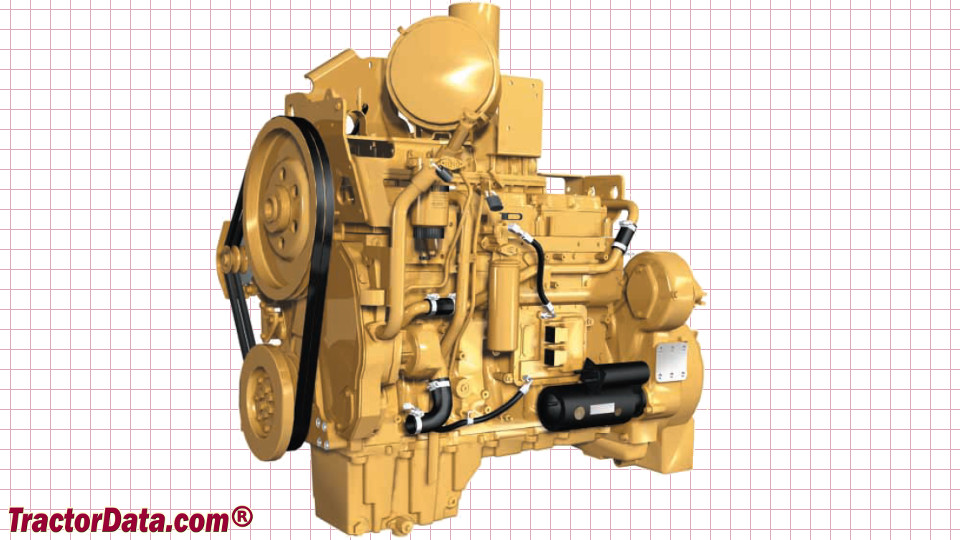

Caterpillar D7R Engine
Caterpillar D7R engine image
