J.I. Case 520 Engine
|
|
| Engine options | |
| Continental 2.7L 4-cyl gasoline | |
| Continental 2.6L 4-cyl diesel |
| Engine Detail | |
| Continental FA-162 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 162 ci 2.7 L |
| Bore/Stroke | 3.436x4.375 inches 87 x 111 mm |
| Power (gross) | 50 hp 37.3 kW |
| Fuel system | carburetor |
| Air cleaner | oil bath |
| Compression | 6.4:1 |
| Rated RPM | 1800 |
| Idle RPM | 550-2400 |
| Torque | 136 lb-ft 184.4 Nm |
| Torque RPM | 2000 |
| Firing order | 1-3-4-2 |
| Starter | electric |
| Starter volts | 6 |
| Coolant capacity | 14 qts 13.2 L |

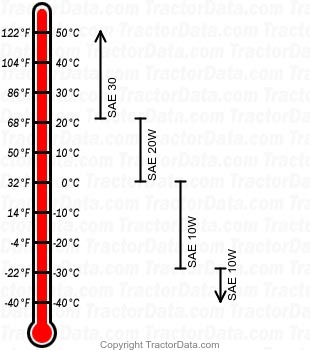

| Engine Oil | |
| |
| Oil capacity | 5 qts 4.7 L |
| Engine Detail | |
| Continental GD-157 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 157 ci 2.6 L |
| Bore/Stroke | 3.375x4.375 inches 86 x 111 mm |
| Power | 45 hp 33.6 kW |
| Torque | 113 lb-ft 153.2 Nm |
| Torque RPM | 1200 |
| Starter | electric |
| Starter volts | 12 |
