| | 1960 - 1965 |
| Industrial tractor |
|
| Transmissions overview |
| 12-speed |
| 4-speed mechanical shuttle |
| 4-speed gear |
| Transmission |

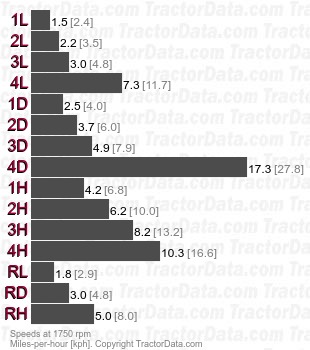

| Transmission | Triple Range
|
| Gears | 12 forward and 3 reverse
|
| Clutch | 11-inch dry disc
|
| Oil capacity | 17 qts
16.1 L
|
| Speeds |
| With 14.9-24 rear tires. |
|
| Transmission |

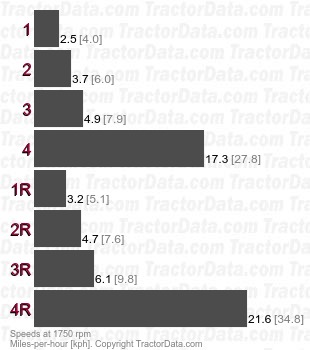

| Type | mechanical shuttle
|
| Gears | 4 forward and reverse
|
| Clutch | 11-inch dry disc
|
| Oil capacity | 17 qts
16.1 L
|
| Speeds |
|
| Transmission |
| Type | gear
|
| Gears | 4 forward and 1 reverse
|
