Tractors > Allis Chalmers > D-15

Allis Chalmers D-15 Transmission



Allis Chalmers D-15 tractor photo
1960 - 1968
Industrial tractor
Series map:
D-15
44.0hp
Transmission options
4-speed gear
8-speed partial power shift
4-speed shuttle
Transmission
Typegear
Gears4 forward and 1 reverse
Clutch228.6mm dry disc
Speeds
With 12.4-26 rear tires.

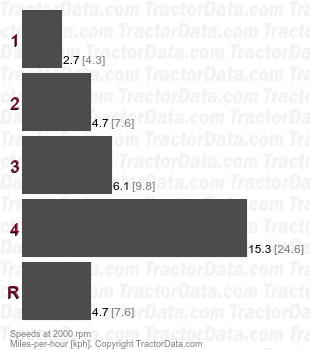

D-15 gear speeds
Transmission
TransmissionPower Director
Typepartial power shift
Gears8 forward and 2 reverse
Clutchwet discs
Speeds
With 12.4-26 rear tires.
D-15 Power Director partial power shift speeds
Transmission
Typeshuttle
Gears4 forward and reverse
Clutch228.6mm dry disc
Speeds
With 12.4-26 rear tires.

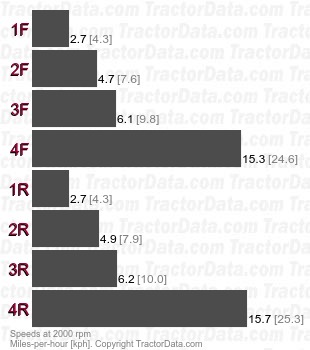

D-15 shuttle speeds
