J.I. Case 680 Construction King Engine
|
|
| Engine options | |
| J.I. Case 4.4L 4-cyl diesel | |
| J.I. Case 4.1L 4-cyl gasoline |
| Engine Detail | |
| J.I. Case 267D | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 267 ci 4.4 L |
| Bore/Stroke | 4.125x5.00 inches 105 x 127 mm |
| Power (net) | 64 hp 47.7 kW |
| Power (gross) | 71 hp 52.9 kW |
| Compression | 15:1 |
| Rated RPM | 2000 |
| Torque | 205 lb-ft 278.0 Nm |
| Torque RPM | 1300 |
| Starter | electric |
| Starter volts | 12 |
| Engine Detail | |
| J.I. Case 251G | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 251 ci 4.1 L |
| Bore/Stroke | 4.00x5.00 inches 102 x 127 mm |
| Power (net) | 63.5 hp 47.4 kW |
| Power (gross) | 71 hp 52.9 kW |
| Compression | 7.5:1 |
| Rated RPM | 2000 |
| Torque | 203 lb-ft 275.3 Nm |
| Torque RPM | 1300 |
| Starter | electric |
| Starter volts | 12 |

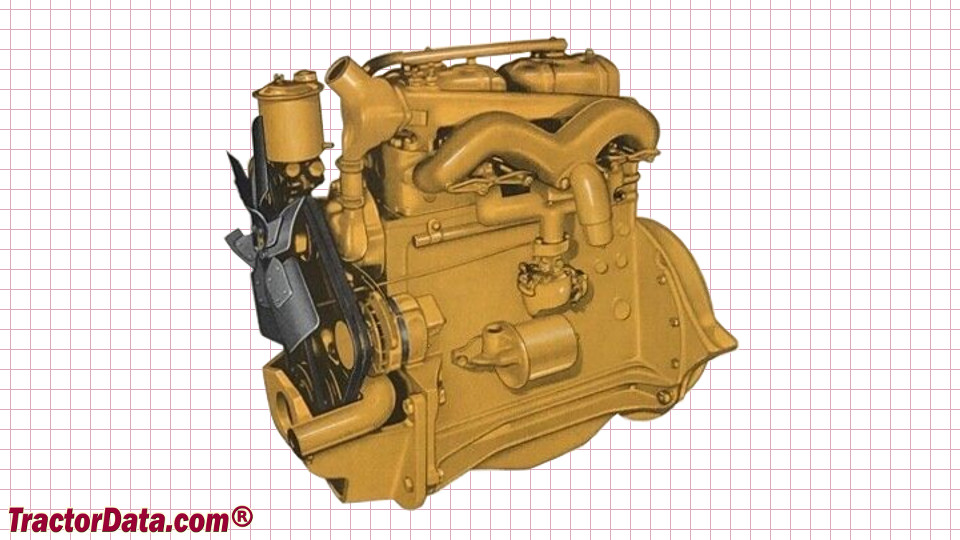

| J.I. Case 680 Engine | |
 |
