Ford 340 Transmission


Ford 340 industrial tractor photo
1979 - 1981
Industrial tractor
Series:340
340A
Transmissions overview
6-speed unsynchronized gear
8-speed unsynchronized gear
Transmission
Typeunsynchronized gear
Gears6 forward and 4 reverse
Clutch330mm dry plate
Oil capacity12.7 qts
12.0 L
Three forward and two reverse gears with a two-speed range shift lever. Tractor must be stopped, and clutch used, to shift gears or range.
Speeds
340  unsynchronized gear speeds
Shift Pattern
Ford 340 transmission controls
Transmission
Typeunsynchronized gear
Gears8 forward and 2 reverse
Clutch330mm dry plate
Oil capacity12.7 qts
12.0 L
Four gears, plus reverse, with a high and low range shift lever. Tractor must be stopped, and clutch used, to shift gears or range.
Speeds

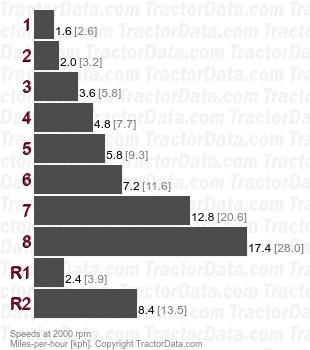

340  unsynchronized gear speeds
Shift Pattern
Ford 340 transmission controls
