Minneapolis-Moline Big Mo 500 Transmission


Minneapolis-Moline Big Mo 500 industrial tractor photo
1960 - 1966
Industrial tractor
Series map:
Big Mo 500
Big Mo 600
56.0hp
56.0hp
Transmissions overview
5-speed mechanical shuttle
10-speed two-speed power shift
Transmission
Typemechanical shuttle
Gears5 forward and reverse
Clutch279.4mm mechanical dry disc
Oil capacity40 qts
37.9 L
Speeds
Big Mo 500  mechanical shuttle speeds
Transmission
TransmissionAmpli-Torc
Typetwo-speed power shift
Gears10 forward and 2 reverse
Speeds

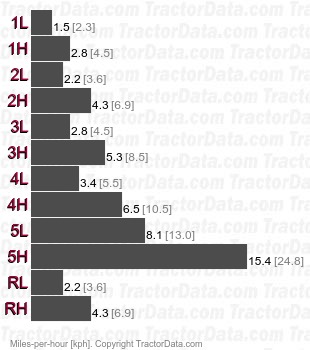

Big Mo 500 Ampli-Torc two-speed power shift speeds
