Ford 4400 Engine
|
|
| Engine options | |
| Ford 3.3L 3-cyl diesel | |
| Ford 3.1L 3-cyl gasoline |
| Engine Detail | |
| Ford | |
| diesel | |
| 3-cylinder | |
| liquid-cooled inline | |
| Displacement | 201 ci 3.3 L |
| Bore/Stroke | 4.40x4.40 inches 112 x 112 mm |
| Power (net) | 53.2 hp 39.7 kW |
| Power (gross) | 56.5 hp 42.1 kW |
| Air cleaner | dry |
| Compression | 16.5:1 |
| Rated RPM | 2200 |
| Idle RPM | 600-2475 |
| Torque | 150 lb-ft 203.4 Nm |
| Torque RPM | 1000 |
| Firing order | 1-2-3 |
| Starter volts | 12 |
| Coolant capacity | 14 qts 13.2 L |

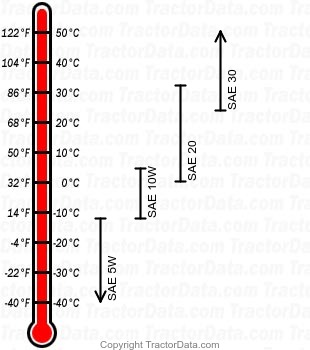

| Engine Oil | |
| |
| Oil capacity | 8 qts 7.6 L |
| Engine Detail | |
| Ford | |
| gasoline | |
| 3-cylinder | |
| liquid-cooled inline | |
| Displacement | 192 ci 3.1 L |
| Bore/Stroke | 4.40x4.20 inches 112 x 107 mm |
| Power (net) | 55.3 hp 41.2 kW |
| Power (gross) | 58.2 hp 43.4 kW |
| Air cleaner | dry |
| Compression | 8:1 |
| Rated RPM | 2200 |
| Idle RPM | 600-2495 |
| Torque | 146 lb-ft 198.0 Nm |
| Torque RPM | 1450 |
| Starter volts | 12 |
| Coolant capacity | 14 qts 13.2 L |
