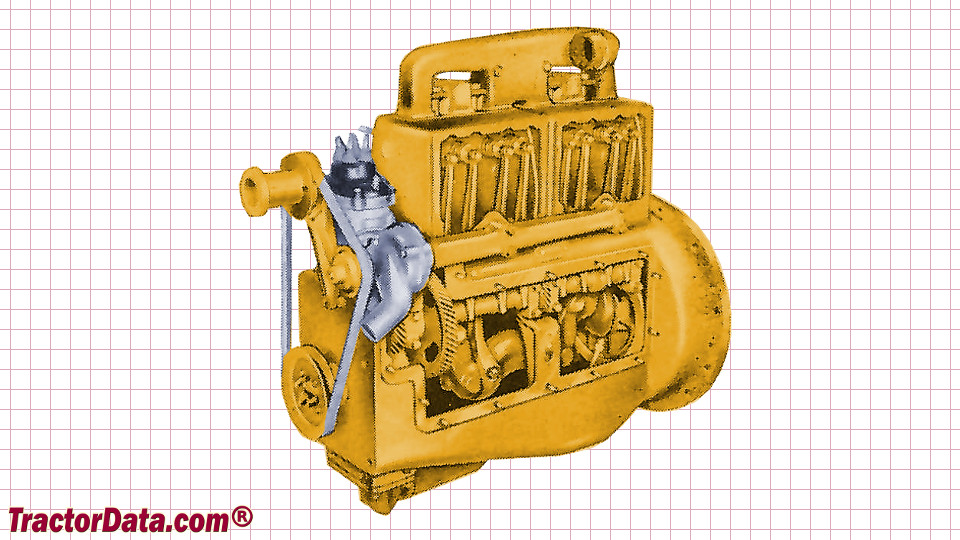

Minneapolis-Moline RTI Engine
|
|
| Engine Detail | |
| Minneapolis-Moline EE | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 165.1 ci 2.7 L |
| Bore/Stroke | 3.625x4.00 inches 92 x 102 mm |
| Power | 27 hp 20.1 kW |
| Air cleaner | oil bath |
| Compression | 5.7:1 |
| Rated RPM | 1500 |
| Firing order | 1-3-4-2 |
| Starter volts | 6 |
| Oil capacity | 7 qts 6.6 L |
| Coolant capacity | 14 qts 13.2 L |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.025 inches (hot) 0.635 mm |
| Exhaust valve clearance | 0.014 inches (hot) 0.356 mm |
