Ford 445 Transmission


Ford 445 industrial tractor photo
1979 - 1983
Industrial tractor
Series:445545
Transmissions overview
6-speed
8-speed
4-speed torque converter
Transmission
TransmissionManual-reversing
Gears6 forward and 4 reverse
Oil capacity12.7 qts
12.0 L
Speeds
With 16.9x24 rear tires.

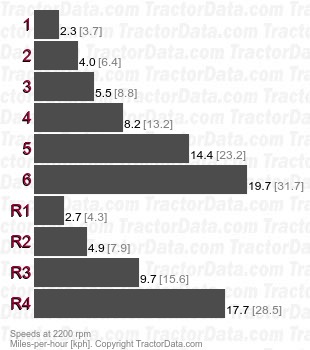

445 Manual-reversing  speeds
Transmission
TransmissionManual-shift
Gears8 forward and 2 reverse
Oil capacity12.7 qts
12.0 L
Speeds
With 16.9x24 rear tires.

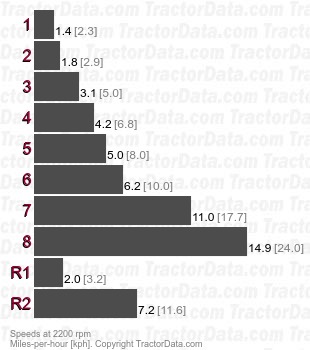

445 Manual-shift  speeds
Transmission
Typetorque converter
Gears4 forward and reverse
Oil capacity19 qts
18.0 L
Torque converter with 2050 engine rpm stall speed and 2.78:1 torque multiplication ratio.
Speeds
With 16.9x24 rear tires.

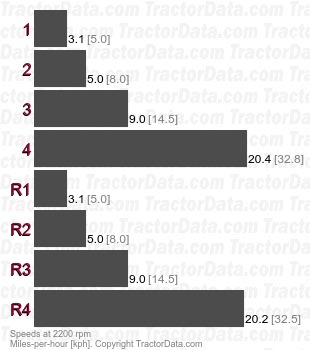

445  torque converter speeds
