J.I. Case 480B Transmission



J.I. Case 480B industrial tractor photo
1971 - 1977
Industrial tractor
Series map:
480B
41.5hp
Transmissions overview
4-speed mechanical shuttle
8-speed mechanical shuttle
Transmission
Typemechanical shuttle
Gears4 forward and reverse
Clutch279mm dry disc
Oil capacity17 qts
16.1 L
Speeds
With 13.6x24 rear tires.

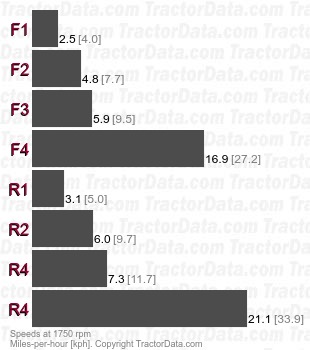

480B mechanical shuttle speeds
Transmission
Typemechanical shuttle
Gears8 forward and reverse
Clutch279mm dry disc
Oil capacity17 qts
16.1 L
Speeds
With 13.6x24 rear tires.

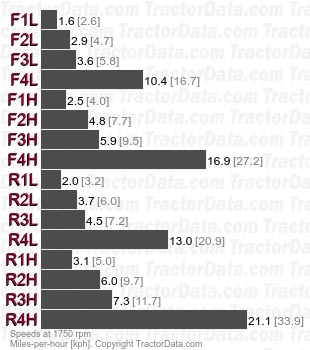

480B mechanical shuttle speeds
