J.I. Case 520 Engine
|
|
| Engine Detail | |
| J.I. Case | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement | 377 ci 6.2 L |
| Bore/Stroke | 4.00x5.00 inches 102 x 127 mm |
| Air cleaner | oil bath |
| Pre-heating | ether injection |
| Rated RPM | 1350 |
| Idle RPM | 600-1500 |
| Firing order | 1-5-3-6-2-4 |
| Starter volts | 12 |
| Intake valve clearance | 0.012 inches (cold) 0.305 mm |
| Exhaust valve clearance | 0.012 inches (cold) 0.305 mm |

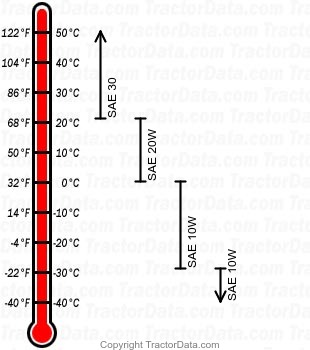

| Engine Oil | |
| |
| Oil capacity | 14 qts 13.2 L |
