| | 1965 - 1970 |
| Industrial Crawler tractor |
|
Series map:
350
450
46.0hp
63.0hp
| Transmissions overview |
| gear |
| 8-speed partial power shift |
| Transmission |
| Type | gear
|
| Clutch | 304.8mm dry disc
|
| Oil capacity | 4 qts
3.8 L
|
| Two speeds forward, one reverse, in four ranges. |

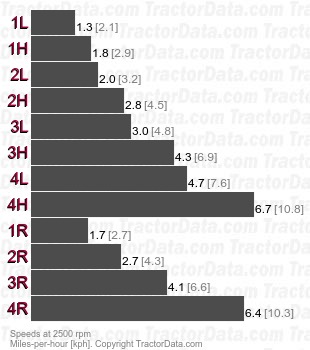

| Speeds |
|
| Transmission |
| Type | partial power shift
|
| Gears | 8 forward and 4 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 32 qts
30.3 L
|
| Two speeds forward, one reverse, in four ranges. |

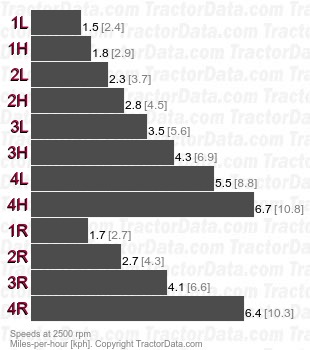

| Speeds |
|
