| | 1960 - 1964 |
|
| Industrial tractor |
|
| Transmissions overview |
| 4-speed unsynchronized |
| 12-speed |
| 4-speed |
| Transmission |

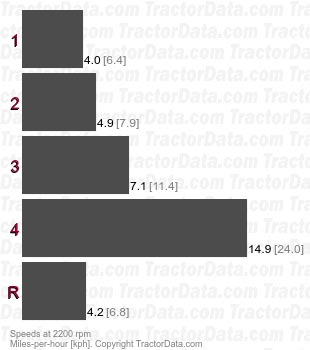

| Type | unsynchronized
|
| Gears | 4 forward and 1 reverse
|
| Oil capacity | 6 qts
5.7 L
|
| Speeds |
| With 12x28 rear tires. |
|
| Transmission |

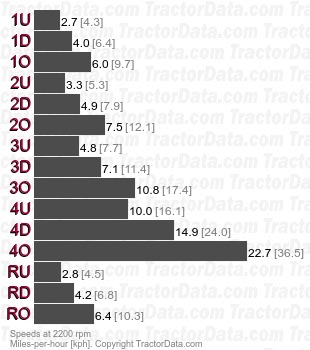

| Transmission | Over-Under
|
| Gears | 12 forward and 3 reverse
|
| Four-speeds with over-, under-, and direct-drive. |
| Speeds |
| With 12x28 rear tires. |
|
| Transmission |
| Transmission | Reversing
|
| Gears | 4 forward and reverse
|
