Tractors > John Deere > 440C

John Deere 440C Tests



John Deere 440C industrial tractor photo
1958 - 1960
Industrial tractor
Nebraska Tractor Test 719

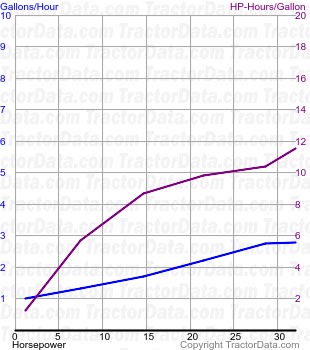

440C fuel use from test 719
Nebraska Tractor Test 719
Diesel 5-speed crawler
September 10 - October 1, 1959
Link: Nebraska Tractor Test 719 file
PTO performance
Power at rated engine speed32.88 hp
24.5 kW
Fuel use2.3 gal/hour
8.7 l/hour
Power at rated PTO speed31.52 hp
23.5 kW
Fuel use2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power26.15 hp
19.5 kW
Fuel use2.2 gal/hour
8.3 l/hour
Gear 3 used for power test.
Max pull7,060 lbs
3202 kg
Gear 1 used for pull test.
Nebraska Tractor Test 720

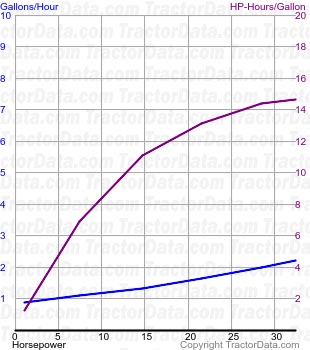

440C fuel use from test 720
Nebraska Tractor Test 720
Gasoline 5-speed crawler
September 10 - October 1, 1959
Link: Nebraska Tractor Test 720 file
PTO performance
Power at rated engine speed31.91 hp
23.8 kW
Fuel use2.8 gal/hour
10.6 l/hour
Power at rated PTO speed29.52 hp
22.0 kW
Fuel use2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power23.31 hp
17.4 kW
Fuel use2.9 gal/hour
11.0 l/hour
Gear 3 used for power test.
Max pull6,548 lbs
2970 kg
Gear 1 used for pull test.
