John Deere 440 Tests


John Deere 440 industrial tractor photo
1958 - 1960
Industrial tractor
420I
Series:440
Nebraska Tractor Test 717

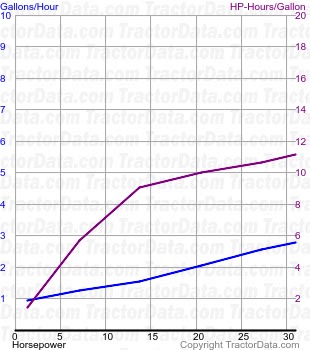

440 fuel use from test 717
Nebraska Tractor Test 717
Diesel 5-speed 2WD
September 9 - 21, 1959
Link: Nebraska Tractor Test 717 file
PTO performance
Power at rated engine speed32.70 hp
24.4 kW
Fuel use2.3 gal/hour
8.7 l/hour
Power at rated PTO speed31.22 hp
23.3 kW
Fuel use2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power26.68 hp
19.9 kW
Max pull4,362 lbs
1978 kg
Nebraska Tractor Test 718

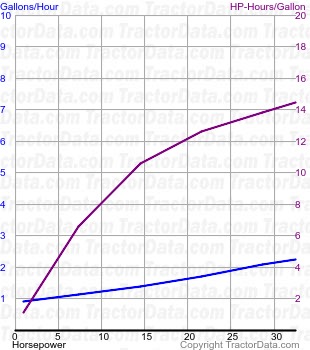

440 fuel use from test 718
Nebraska Tractor Test 718
Gasoline 5-speed 2WD
September 10 - 21, 1959
Link: Nebraska Tractor Test 718 file
PTO performance
Power at rated engine speed31.08 hp
23.2 kW
Fuel use2.8 gal/hour
10.6 l/hour
Power at rated PTO speed28.08 hp
20.9 kW
Fuel use2.4 gal/hour
9.1 l/hour
Drawbar performance
Max power26.17 hp
19.5 kW
Fuel use2.7 gal/hour
10.2 l/hour
Gear 3 used for power test.
Max pull3,950 lbs
1791 kg
Gear 1 used for pull test.
