John Deere 300 Transmission


John Deere 300 tractor photo
1965 - 1973
Industrial tractor
Transmission options
8-speed constant mesh
8-speed power shuttle
Transmission
Typeconstant mesh
Gears8 forward and 4 reverse
Oil capacity40 qts
37.9 L

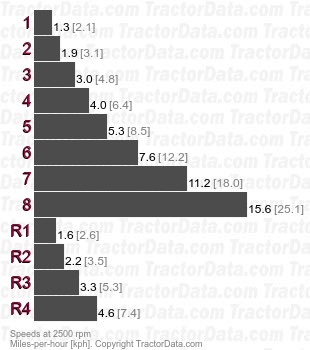

Speeds
With 14.9-24 rear tires.
300  constant mesh speeds
Shift Pattern
John Deere 300 transmission controls
Transmission
TransmissionDirection Reverser
Typepower shuttle
Gears8 forward and 4 reverse
Optional Direction Reverser allows for clutchless power shifts from forward to reverse in gears 1 to 4.
