John Deere 500A Transmission


John Deere 500A tractor photo
1966 - 1969
Industrial tractor
Series map:
500A
80.0hp
Transmission
Transmissionpower shift
Gears8 forward and 4 reverse
Oil capacity56 qts
53.0 L
Full power shifts in forward and reverse ranges. Forward to reverse power shift in gears 1 to 4.
Speeds
With 16.9-28 rear tires.
500A power shift  speeds
Transmission
Transmissioncollar shift
Gears8 forward and 2 reverse
Oil capacity38 qts
36.0 L
Speeds
With 16.9-28 rear tires.

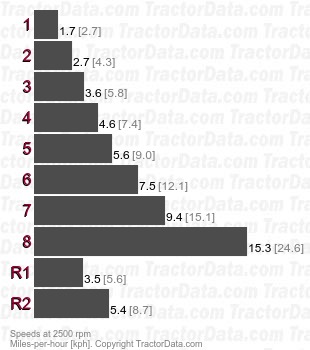

500A collar shift  speeds
