| | 1987 - 1994 |
| 303 Series | | Utility tractor |
|
Series map:
383
393
52.0kw
59.0kw
| Transmission options |
| 12-speed synchromesh |
| 24-speed |
| Transmission |
| Type | synchromesh
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 305mm mechanical dry disc
|
| Four synchronized gears in three ranges, plus reverse range. |

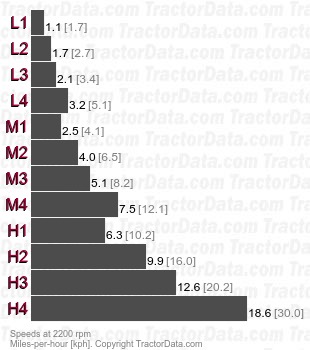

| Speeds |
| With 16.9-34 rear tires. |
|

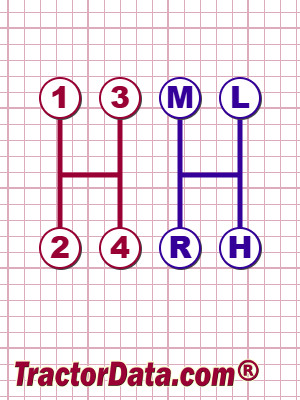

| Shift Pattern |
 |
| Transmission |
| Gears | 24 forward and 12 reverse
|
| Clutch | 305mm mechanical dry disc
|
