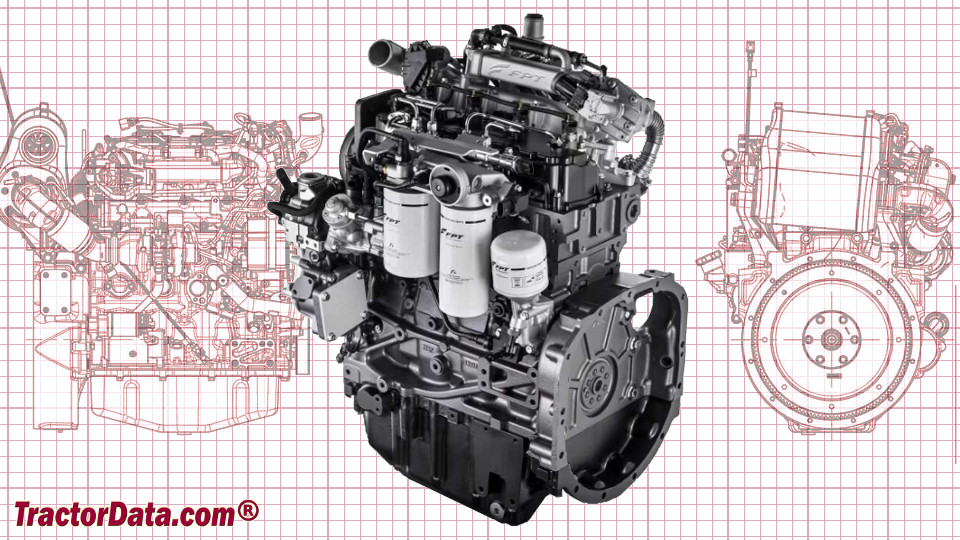

CaseIH Farmall 110C Engine
|
|
Series map:
Farmall 100C
Farmall 110C
Farmall 120C
93.3hp*
102.2hp*
110.0hp*
*Estimated engine power for comparison only.
| Engine Detail | |
| FPT F36 | |
| diesel | |
| 4-cylinder 16-valve | |
| liquid-cooled inline | |
| Displacement | 220 ci 3.6 L |
| Bore/Stroke | 4.02x4.33 inches 102 x 110 mm |
| Emissions | Stage V |
| Maximum Power (gross) | 108 hp 80.5 kW |
| Fuel system | electronic high-pressure common rail |
| Rated RPM | 2300 |
| Torque | 361 lb-ft 489.5 Nm |
| Torque RPM | 1300 |
| Starter | electric |
| Starter volts | 12 |
