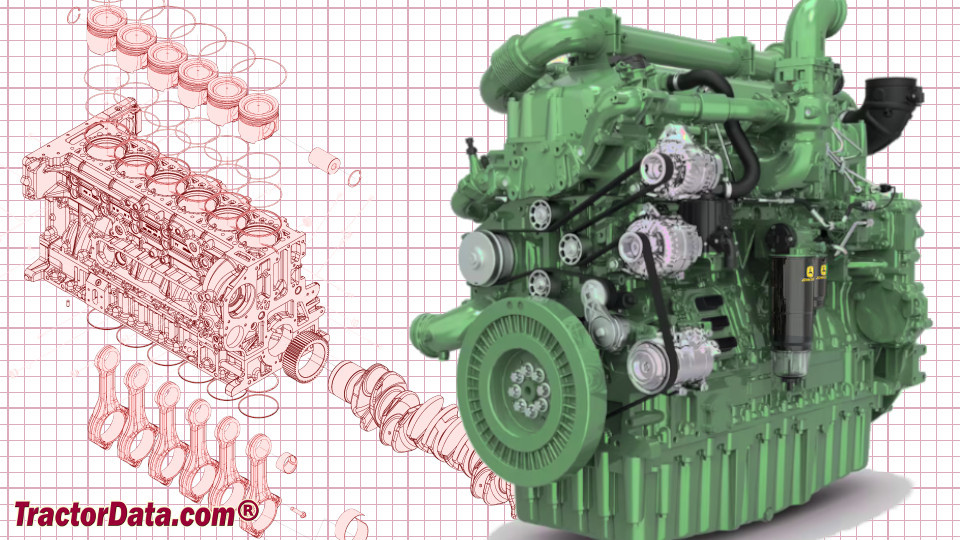

John Deere 9RX 830 Engine
|
|
| Engine Detail | |
| John Deere JD18X | |
| turbocharged aftercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled inline | |
| Displacement | 1098 ci 18.0 L |
| Bore/Stroke | 5.82x6.85 inches 148 x 174 mm |
| Emissions | Tier IV |
| Rated Power (net) | 797 hp 594.3 kW |
| Rated Power (gross) | 830 hp 618.9 kW |
| Maximum Power (net) | 876 hp 653.2 kW |
| Maximum Power (gross) | 913 hp 680.8 kW |
| Compression | 16.1:1 |
| Rated RPM | 1900 |
| Torque | 3123 lb-ft 4234.8 Nm |
| Torque RPM | 1400 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 75.6 qts 71.5 L |
| Oil change | 500 h |
| Coolant capacity | 123.6 qts 117.0 L |
| John Deere 9RX 830 Engine | |
 |
