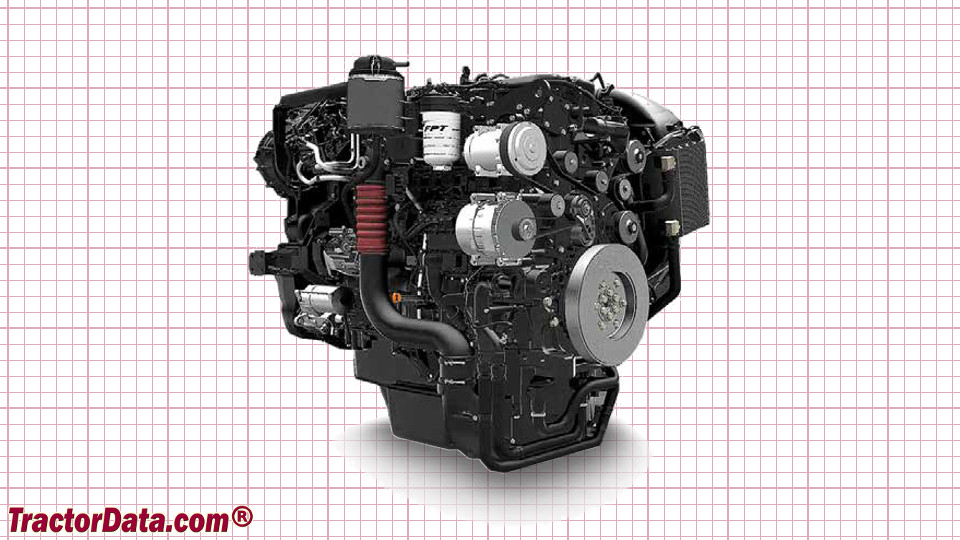

CaseIH Steiger 785 Quadtrac Engine
|
|
| Engine Detail | |
| FPT Cursor 16 | |
| turbocharged diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement | 970 ci 15.9 L |
| Bore/Stroke | 5.55x6.69 inches 141 x 170 mm |
| Emissions | Tier IV |
| Rated Power (gross) | 785 hp 585.4 kW |
| Maximum Power (gross) | 853 hp 636.1 kW |
| Rated RPM | 2100 |
| Starter | electric |
| Starter volts | 12 |
| CaseIH Steiger 785 Quadtrac Engine | |
 |
