Tractors > CaseIH > Magnum 355

CaseIH Magnum 355 Engine



CaseIH Magnum 355 tractor photo
2025 -
Magnum Series
Row-Crop tractor
Series map:
Magnum 325
Magnum 355
Magnum 385
325.0hp
355.0hp
385.0hp
Engine Detail
FPT
Variable-geometry turbocharged diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)355 hp
264.7 kW
Maximum Power (gross)390 hp
290.8 kW
Boost Power410 hp
305.7 kW
Pre-heatingintake heater
 block heater OptOptional
Rated RPM2000
Starterelectric
Starter volts12
CaseIH Magnum 355 Engine

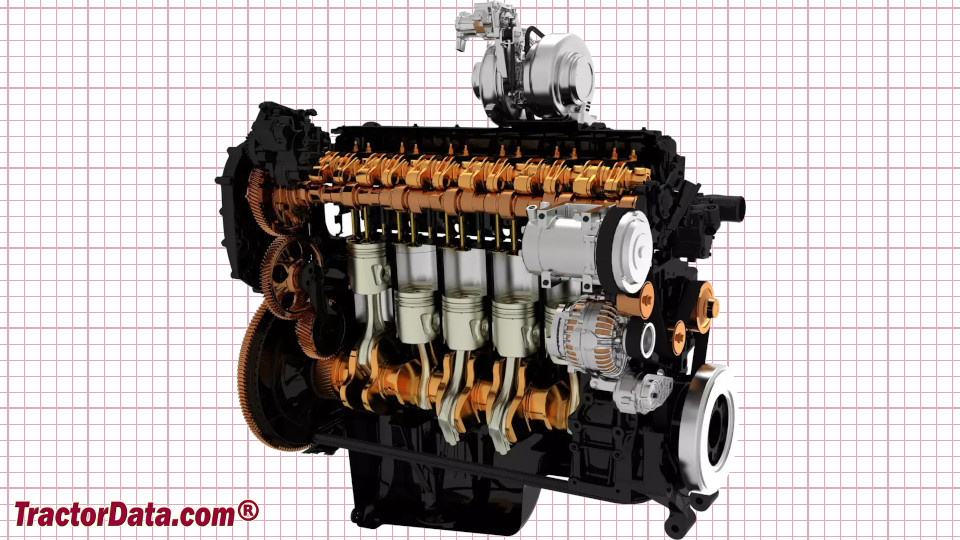

CaseIH Magnum 355 engine image
