| | 2024 - |
| T9 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
T9.470
T9.520
419.2hp
468.5hp
| Engine Detail |
| FPT Cursor 13 |
| turbocharged aftercooled diesel |
| 6-cylinder 24-valve |
| liquid-cooled |
| Displacement | 787 ci
12.9 L
|
| Bore/Stroke | 5.31x5.91 inches
135 x 150 mm
|
| Emissions | Tier IV
|
| Rated Power (gross) | 419.2 hp
312.6 kW
|
| Maximum Power (gross) | 460.6 hp
343.5 kW
|
| Rated RPM | 2100
|
| Starter | electric
|
| Starter volts | 12
|

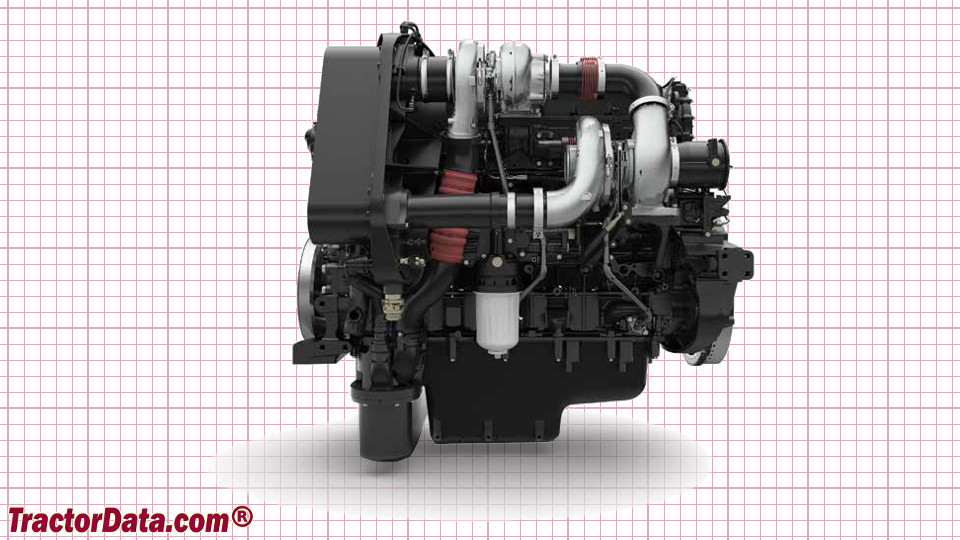

| New Holland T9.470 Engine |
 |
