| | 2016 - 2023 |
| RTS Series | | Compact Utility tractor |
|
Series map:
RTS23
RTS25
17.3kw
18.4kw
| Transmission options |
| 12-speed gear |
| 30-speed partial power shift |
| Transmission |
| Type | gear
|
| Gears | 12 forward and reverse
|
| Clutch | dry disc
|
| Four gears in three ranges with mechanical shuttle. |
| Speeds |
|
| Transmission |
| Type | partial power shift
|
| Gears | 30 forward and reverse
|
| Ten power shift gears in three ranges with power shuttle. |

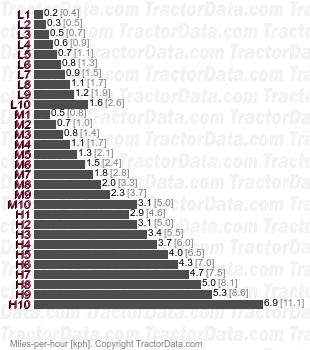

| Speeds |
|
