Iseki TH255 Transmission


Iseki TH255 tractor photo
2010 - 2016
TH5 Series
Compact Utility tractor
Series map:
TH235
TH255
TH265
17.3kw
18.4kw
19.5kw
Transmission options
12-speed gear
24-speed partial power shift
Transmission
Typegear
Gears12 forward and reverse
Clutchdry disc
Four gears in three ranges with mechanical shuttle.
Speeds

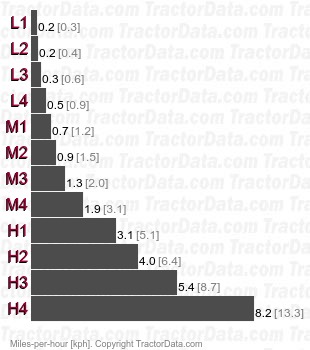

TH255  gear speeds
Transmission
Typepartial power shift
Gears24 forward and reverse
Eight power shift gears in three ranges with power shuttle.
Speeds

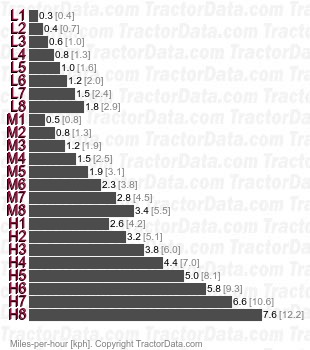

TH255  partial power shift speeds
