Tractors > Claas > Arion 610

Claas Arion 610 Transmission



Claas Arion 610 tractor photo
2017 -
Arion 600 Series
Row-Crop tractor
Series map:
Arion 610
Arion 630
100.7kw
115.6kw
Transmission options
24-speed six-speed power shift
continuously-variable transmission
Transmission
TransmissionHexashift
Typesix-speed power shift
Gears24 forward and reverse
Six power shift gears in four ranges with power shuttle.

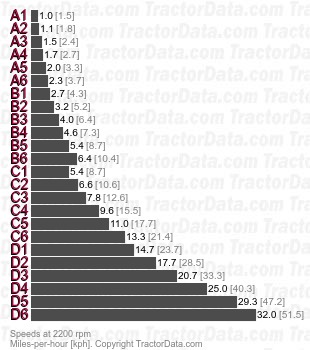

Speeds
With 20.8R38 rear tires and 50 kph option.
Arion 610 Hexashift six-speed power shift speeds

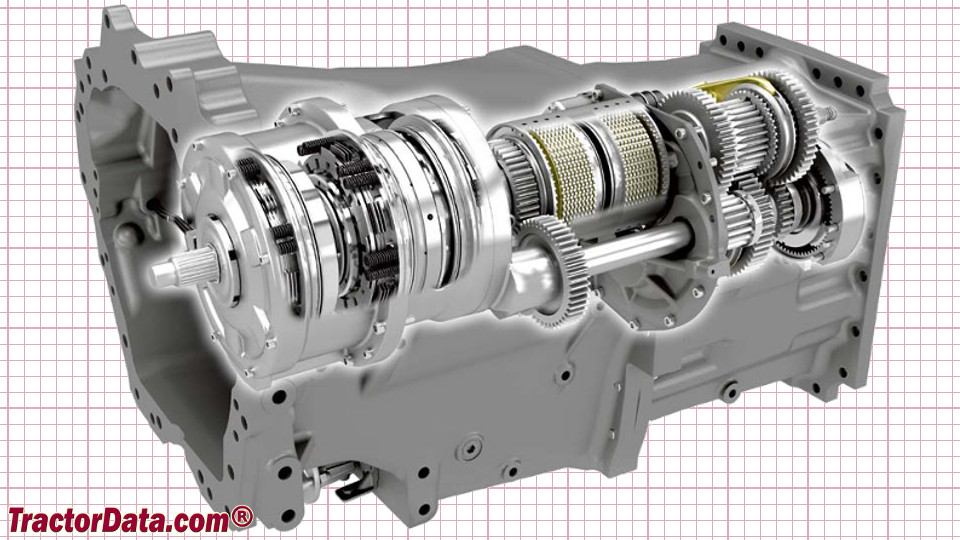

Claas Arion 610 Transmission
Claas Arion 610 transmission image
Transmission
TransmissionCMATIC EQ 200
Typecontinuously-variable transmission
Gearsinfinite forward and reverse

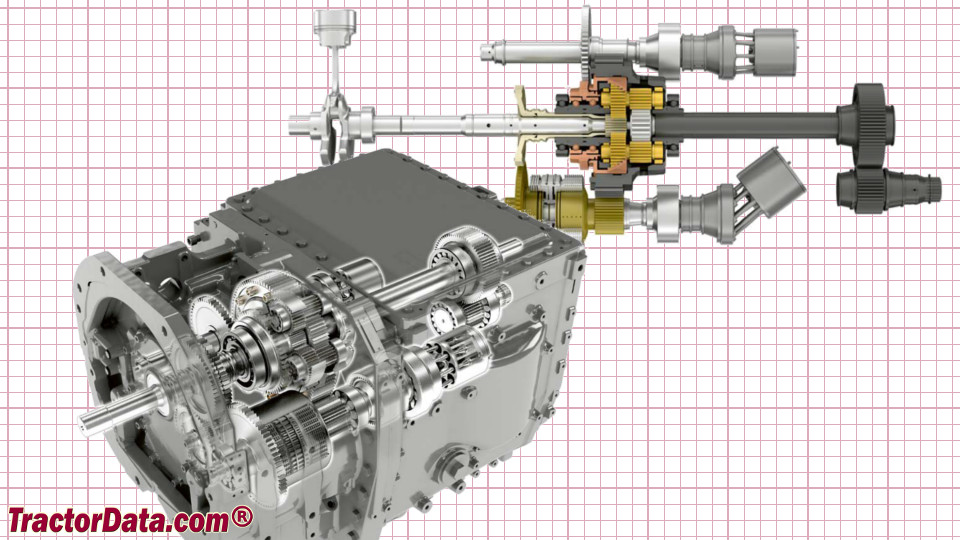

Claas Arion 610 Transmission
Claas Arion 610 transmission image
