| | 1957 |
| 800 Series | | Utility tractor |
|
Series map:
650
840
33.3hp*
44.4hp*
*Estimated engine power for comparison only.
| Transmissions overview |

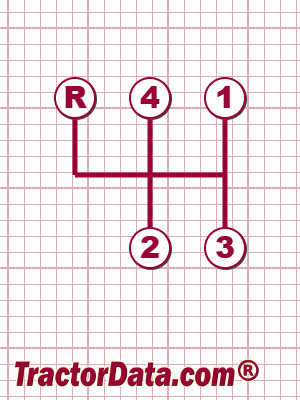

| 4-speed unsynchronized gear |
| 12-speed unsynchronized gear |
| Transmission |
| Type | unsynchronized gear
|
| Gears | 4 forward and 1 reverse
|
| Clutch | dry disc
|
| Oil capacity | 8 qts
7.6 L
|
| Oil type |
|

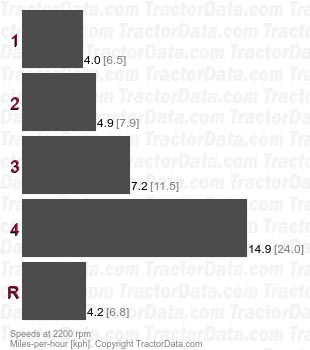

| Speeds |
|
| Transmission |
| Transmission | Sherman
|
| Type | unsynchronized gear
|
| Gears | 12 forward and 3 reverse
|
| Clutch | dry disc
|
| The Sherman under-over auxiliary transmission was available as a factory option on the 840. Tractors equipped with the transmission were marked 840S. |
| Speeds |
|
