| | 2019 - 2023 |
| eMax L Series | | Sub-Compact Utility tractor | | TYM built |
|
Series map:
eMax 22L
eMax 25L
22.0hp
24.0hp
| Engine Detail |
| Kukje A1100N2 |
| diesel |
| 3-cylinder |
| liquid-cooled |
| Displacement | 71.7 ci
1.2 L
|
| Bore/Stroke | 3.07x3.23 inches
78 x 82 mm
|
| Power | 24 hp
17.9 kW
|
| Fuel system | indirect injection
|
| Compression | 21:1
|
| Rated RPM | 2600
|
| Firing order | 1-2-3
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 3.7 qts
3.5 L
|

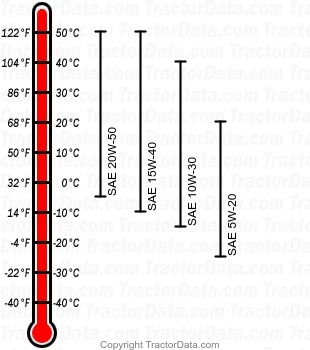

| Engine Oil |
|
| Oil capacity | 2.3 qts
2.2 L
|
| Oil change | 250 h
|

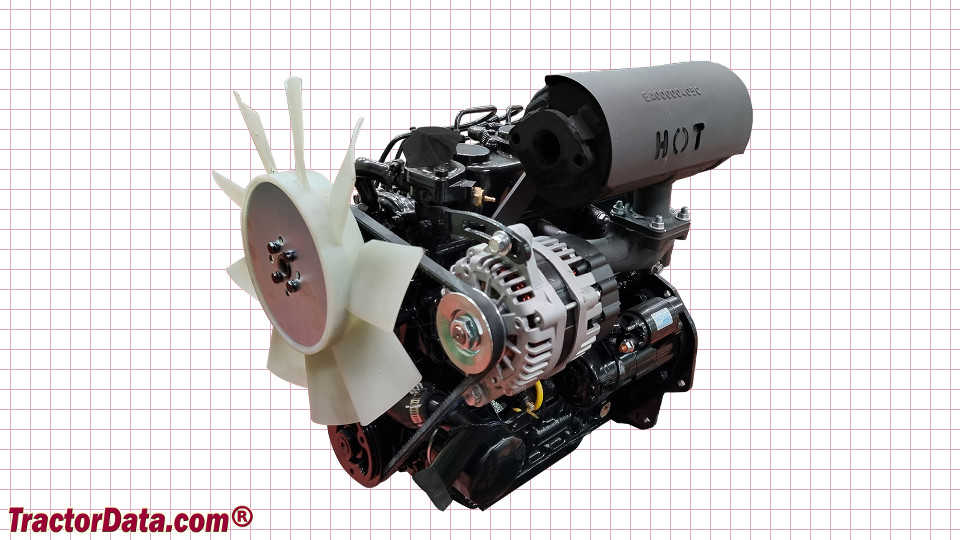

| Mahindra eMax 25L Engine |
 |
