Tractors > Hurlimann > H-307 XE

Hurlimann H-307 XE Transmission



Hurlimann H-307 XE tractor photo
1993 - 2001
H-300 XE Series
Utility tractor
Series:H-306 XE ← H-307 XE

Note: the Hurlimann model H-307 XE is the same as the SAME Argon 70. The following data is from the Argon 70 listing.
Transmissions overview
8-speed mechanical shuttle
12-speed creeper
16-speed
24-speed creeper
Transmission
Type:mechanical shuttle
Gears:8 forward and reverse
Speeds
With 420/70R30 rear tires.
H-307 XE mechanical shuttle speeds
Transmission
Type:creeper
Gears:12 forward and reverse
Speeds
With 420/70R30 rear tires.

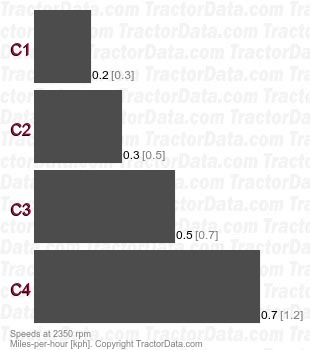

H-307 XE creeper speeds
Transmission
Gears:16 forward and 8 reverse
Transmission
Type:creeper
Gears:24 forward and 12 reverse
