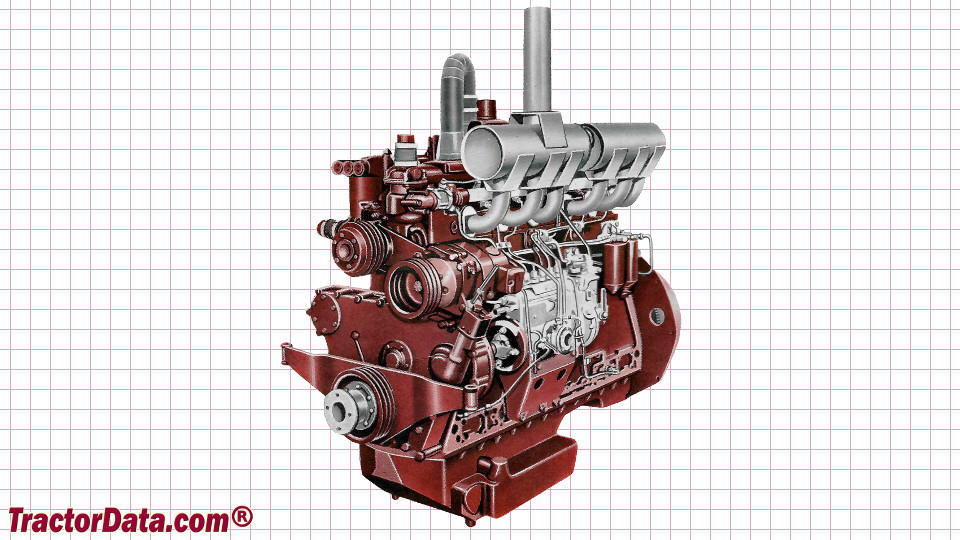

International Harvester BTD-20 Engine
|
|
| Engine Detail | |
| Rolls-Royce C6N | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement | 742.6 ci 12.2 L |
| Bore/Stroke | 5.125x6.00 inches 130 x 152 mm |
| Power (net) | 135 hp 100.7 kW |
| Rated RPM | 1550 |
| Torque | 480 lb-ft 650.9 Nm |
| Torque RPM | 1150 |
| Starter | electric |
| Starter volts | 24 |
| Oil capacity | 33.6 qts 31.8 L |
| Coolant capacity | 43.2 qts 40.9 L |
| International Harvester BTD-20 Engine | |
 |
