CaseIH Farmall 120U Tests


CaseIH Farmall 120U tractor photo
2016 -
Farmall U Series
Utility tractor
Series:Farmall 110UFarmall 120U
OCED Tractor Test 2972

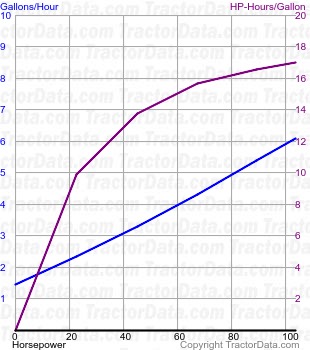

Farmall 120U fuel use from test 1129
OCED Tractor Test 2972
Diesel 16-speed 4WD
February 2016 - March 2016,
Link: OCED Tractor Test 2972 file
PTO performance
Max power:104.6 hp
78.0 kW
Fuel use:5.9 gal/hour
22.3 l/hour
Power at rated engine speed:103.5 hp
77.2 kW
Fuel use:6.1 gal/hour
23.1 l/hour
Power at rated PTO speed:104.6 hp
78.0 kW
Fuel use:5.9 gal/hour
22.3 l/hour
Drawbar performance
Max power:76.2 hp
56.8 kW
Fuel use:6.1 gal/hour
23.1 l/hour
Gear 6L used for power test.
Max pull:9015 lbs
4089 kg
Gear 4L used for pull test.
