Tractors > John Deere > 7510 Hi-Crop

John Deere 7510 Hi-Crop Transmission



John Deere 7510 Hi-Crop tractor photo
1999 - 2002
7010 Series
High-Clearance tractor
Series map:
7410 Hi-Crop
7510 Hi-Crop
120.0hp
135.0hp
Transmission options
12-speed fully synchronized
16-speed partial power shift
Transmission
TransmissionJohn Deere SyncroPlus
Typefully synchronized
Gears12 forward and 4 reverse
Clutchwet disc
2WD Oil capacity60 qts
56.8 L
4WD Oil capacity68 qts
64.4 L
Oil type
JD Hy-Gard
Three synchronized speeds (plus reverse) in four synchronized ranges (A-D). Synchronized shuttle shifting.
Speeds
With 18.4-38 rear tires.

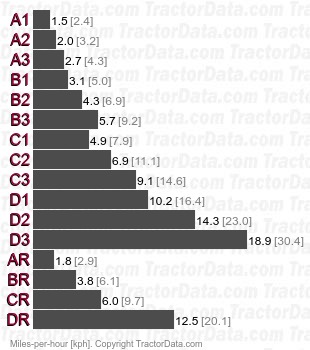

7510 Hi-Crop SyncroPlus fully synchronized speeds
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Clutchwet disc
2WD Oil capacity60 qts
56.8 L
4WD Oil capacity68 qts
64.4 L
Oil type
JD Hy-Gard
Four power shift speeds (1-4) in four synchronized ranges (A-D). Right- or left-hand power shuttle.
Speeds
With 18.4-38 rear tires.

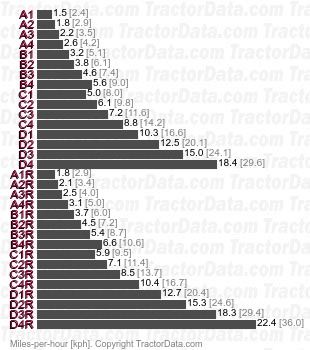

7510 Hi-Crop PowrQuad partial power shift speeds
