John Deere 6175M Transmission
|
|
| Transmission options | |
| 16-speed four-speed power shift | |
| 20-speed four-speed power shift |
| Transmission | |
| Transmission | PowrQuad |
| Type | four-speed power shift |
| Gears | 16 forward and reverse |
| Four power shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle. | |

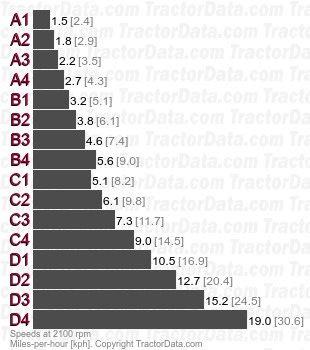

| Speeds | |
| With 460/85R42 rear tires and 30 KPH transmission option. Reverse speeds are 4% faster than forward. | |
|
| Transmission | |
| Transmission | PowrQuad/AutoQuad |
| Type | four-speed power shift |
| Gears | 20 forward and reverse |
| Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand power shuttle. AutoQuad automatically shifts through the available gears within the selected range. | |

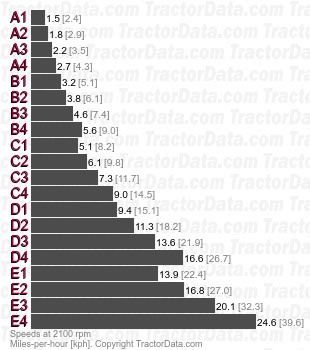

| Speeds | |
| With 460/85R42 rear tires and 40 KPH transmission option. Reverse speeds are 4% faster than forward. | |
|
| Transmission | |
| Transmission | CommandQuad |
| Type | four-speed power shift |
| Gears | 20 forward and reverse |
| Four power shift gears (1-4) in five electro-hydraulically shifted ranges (A-F) with left-hand power shuttle. | |
| Speeds | |
| With 460/85R42 rear tires and 40 KPH transmission option. Reverse speeds are 4% faster than forward. | |
|
