| | 2015 - 2023 |
|
| 6M Series | | Utility tractor |
|
Series map:
6110M
6120M
110.0hp
120.0hp
| Transmissions overview |
| 16-speed four-speed power shift |
| 24-speed four-speed power shift |
| infinitely variable transmission (IVT) |
| Transmission |
| Transmission | PowrQuad
|
| Type | four-speed power shift
|
| Gears | 16 forward and reverse
|
| Four power shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle. Available with creeper range providing an additional 12 speeds in forward and reverse. |

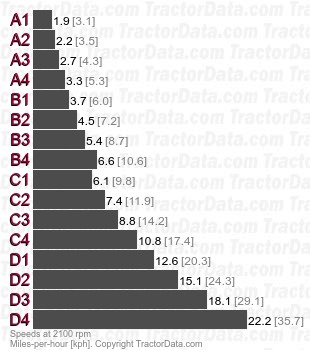

| Speeds |
| With 600/65R38 rear tires and 40 KPH transmission option. Reverse speeds are 4% faster than forward. |
|
| Transmission |
| Transmission | PowrQuad/AutoQuad
|
| Type | four-speed power shift
|
| Gears | 24 forward and reverse
|
| Four power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. AutoQuad automatically shifts through the available gears within the selected range. Available with creeper range providing an additional 12 speeds in forward and reverse. |
| Speeds |
| With 600/65R38 rear tires and 40 KPH transmission option. Reverse speeds are 4% faster than forward. |
|
| Transmission |
| Transmission | CommandQuad
|
| Type | four-speed power shift
|
| Gears | 24 forward and reverse
|
| Four power shift gears (1-4) in six electro-hydraulically shifted ranges (A-F) with left-hand power shuttle. |
| Speeds |
| With 600/65R38 rear tires. Reverse speeds are 4% faster than forward. |
|
| Transmission |
| Transmission | AutoPowr
|
| Type | infinitely variable transmission (IVT)
|
| Gears | infinite forward and reverse
|
