Tractors > John Deere > 7R 230

John Deere 7R 230 Tests



John Deere 7R 230 tractor photo
2019 -
7R Series
Row-Crop tractor
Series map:
7R 210
7R 230
7R 250
210.0hp
230.0hp
250.0hp
OCED Tractor Test 939A

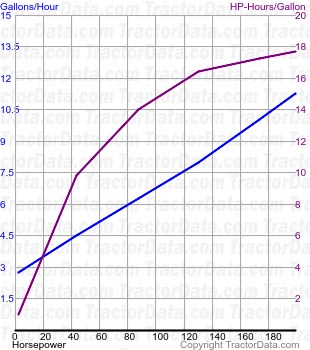

7R 230 fuel use from test 2090A
OCED Tractor Test 939A
Diesel e23 4WD
June 24 - 27, 2014
Link: OCED Tractor Test 939A file
PTO performance
Max power227.56 hp
169.7 kW
Fuel use12.3 gal/hour
46.6 l/hour
Power at rated engine speed198.79 hp
148.2 kW
Fuel use11.2 gal/hour
42.4 l/hour
Power at rated PTO speed223.09 hp
166.4 kW
Fuel use12.3 gal/hour
46.6 l/hour
Drawbar performance
Max power179.37 hp
133.8 kW
Fuel use11.2 gal/hour
42.4 l/hour
Gear 10 used for power test.
Max pull20910 lbs
9484 kg
Gear 6 used for pull test.
