Tractors > Allis Chalmers > 8010 High-Clearance

Allis Chalmers 8010 High-Clearance Engine



Allis Chalmers 8010 High-Clearance tractor photo
1982 - 1985
8000 Series
High-Clearance tractor
Series map:
8010 High-Clearance
8030 High-Clearance
119.3hp*
148.7hp*
*Estimated engine power for comparison only.
Engine Detail
Allis Chalmers 649T
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement301 ci
4.9 L
Bore/Stroke3.875x4.25 inches
98 x 108 mm
Rated RPM2300
Operating RPM750-2580
Starterelectric
Starter volts12
Oil capacity16 qts
15.1 L
Coolant capacity31 qts
29.3 L

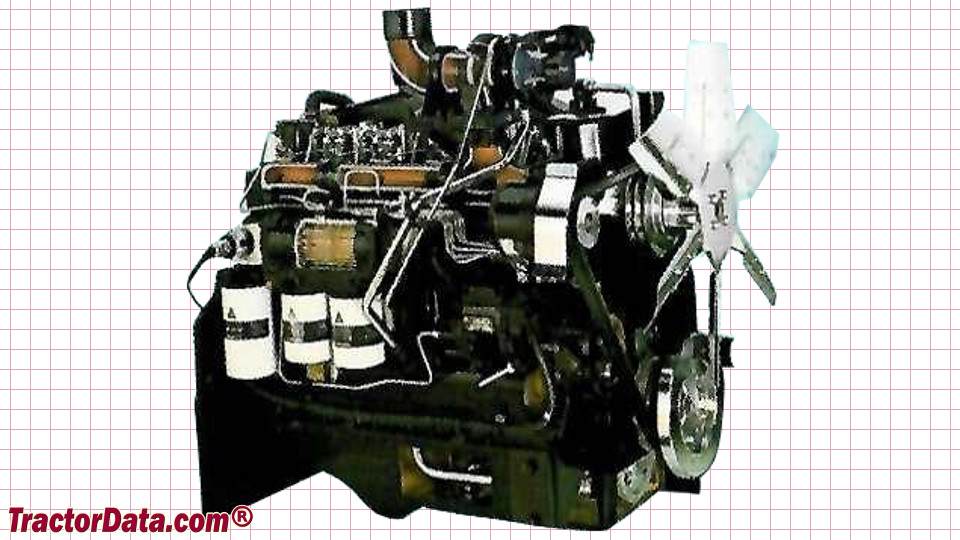

Allis Chalmers 8010 High-Clearance Engine
Allis Chalmers 8010 High-Clearance engine image
