New Holland TS115 Engine

No photo available
2001 - 2003
TS Series
Engine Detail
New Holland
Displacement:456 ci
7.5 L
Bore/Stroke:4.40x5.00 inches
112 x 127 mm
Emissions:Stage I
Rated RPM:2070
Firing order:1-5-3-6-2-4
Coolant capacity:22.8 qts
21.6 L
Intake valve clearance:0.014-0.018 inches
0.356 mm (cold)
Exhaust valve clearance:0.017-0.021 inches
0.432 mm (cold)
Engine Oil

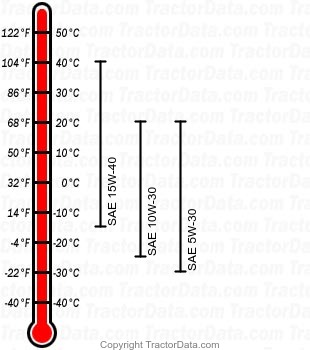

TS115 diesel engine oil chart
Oil capacity:22 qts
20.8 L
Page information
Last update:December 19, 2019
Copyright:Copyright 2021 TractorData LLC
©2000-2021 -®. Notice: Every attempt is made to ensure the data listed is accurate. However, differences between sources, incomplete listings, errors, and data entry mistakes do occur. Consult official literature from the manufacturer before attempting any service or repair.
