Tractors > Bolinder-Munktell > BM-20

Bolinder-Munktell BM-20 Engine



Bolinder-Munktell BM-20 tractor photo
1944 - 1950
Standard-tread tractor
Series map:
BM-10
BM-20
14.9kw
30.6kw
Engine Detail
Bolinder W5
diesel
2-cylinder
liquid-cooled
Displacement323.4 ci
5.3 L
Bore/Stroke5.91x5.91 inches
150 x 150 mm
Power41 hp
30.6 kW
Rated RPM1050
Starterelectric
Starter volts24
Oil capacity11.1 qts
10.5 L
Coolant capacity23.3 qts
22.1 L

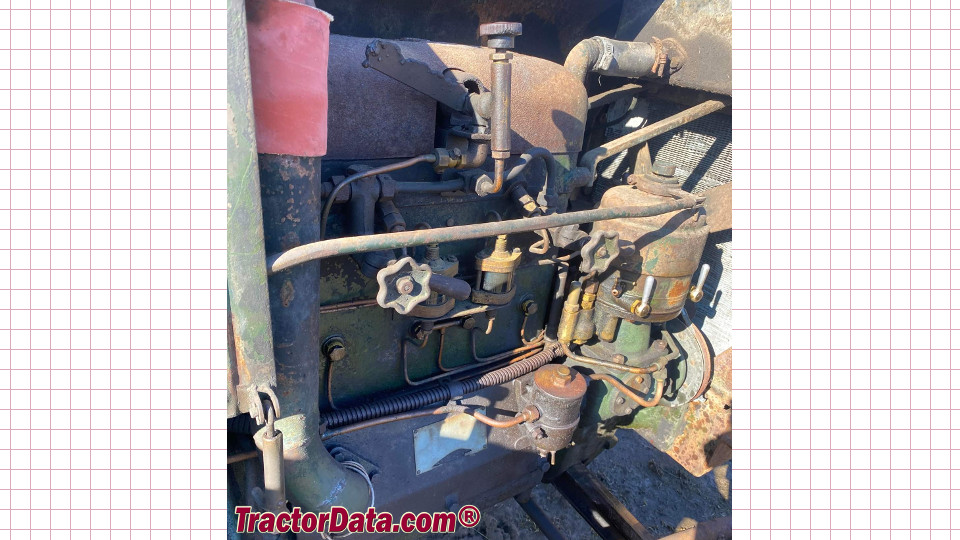

Bolinder-Munktell BM-20 Engine
Bolinder-Munktell BM-20 engine image
Image courtesy of Kamil Szturc
