| | 2001 - 2004 |
| High-Clearance tractor |
|
| Transmissions overview |
| 12-speed unsynchronized |
| 12-speed synchronized |
| 16-speed power shuttle |
| Transmission |
| Type | unsynchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | dry disc
|
| Oil capacity | 68 qts
64.4 L
|
| Three gears, plus reverse, in three ranges. Tractor must be stopped, and clutch used, to shift gears or ranges. |
| Speeds |
| With 13.6-38 rear tires. |
|
| Transmission |
| Transmission | SyncShuttle
|
| Type | synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | dry disc
|
| Oil capacity | 68 qts
64.4 L
|
| Three gears, plus reverse, in three ranges. Gear shifts are synchronized. Tractor must be stopped, and clutch used, to shift ranges. |

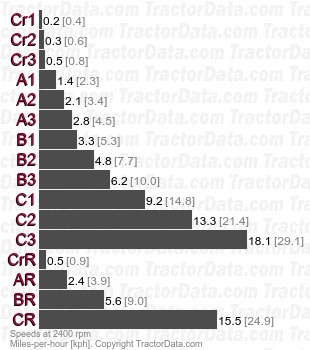

| Speeds |
| With 13.6-38 rear tires. |
|
| Transmission |
| Transmission | PowrReverser
|
| Type | power shuttle
|
| Gears | 16 forward and reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 76 qts
71.9 L
|
| Four gears in four ranges with power shuttle. Gear shifts are synchronized. Tractor must be stopped, and clutch used, to shift ranges. |

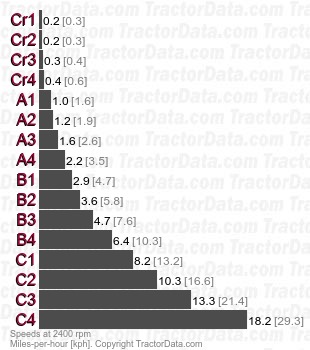

| Speeds |
| With 13.6-38 rear tires. Reverse speeds are 15% faster than forward. |
|
