Series: | 70-66 High Clearance | → 80-66 High Clearance |
Transmissions overview | |
12-speed syncromesh | |
20-speed creeper |
Transmission | |
Type: | syncromesh |
Gears: | 12 forward and 4 reverse |
Clutch: | 279.4mm dry disc |
Four synchronized gears (1-4) in three ranges (I, II, III) plus reverse range. |

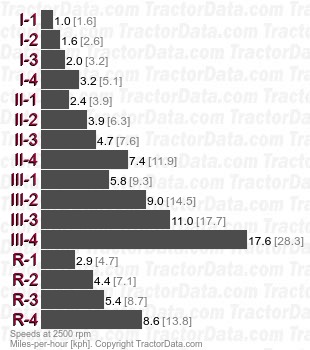

Speeds | |
With 13.6-38 rear tires. | |
Transmission | |
Type: | creeper |
Gears: | 20 forward and 8 reverse |
Clutch: | 279.4mm dry disc |

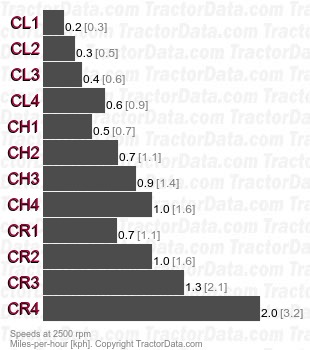

Speeds | |
With 13.6-38 rear tires. | |
